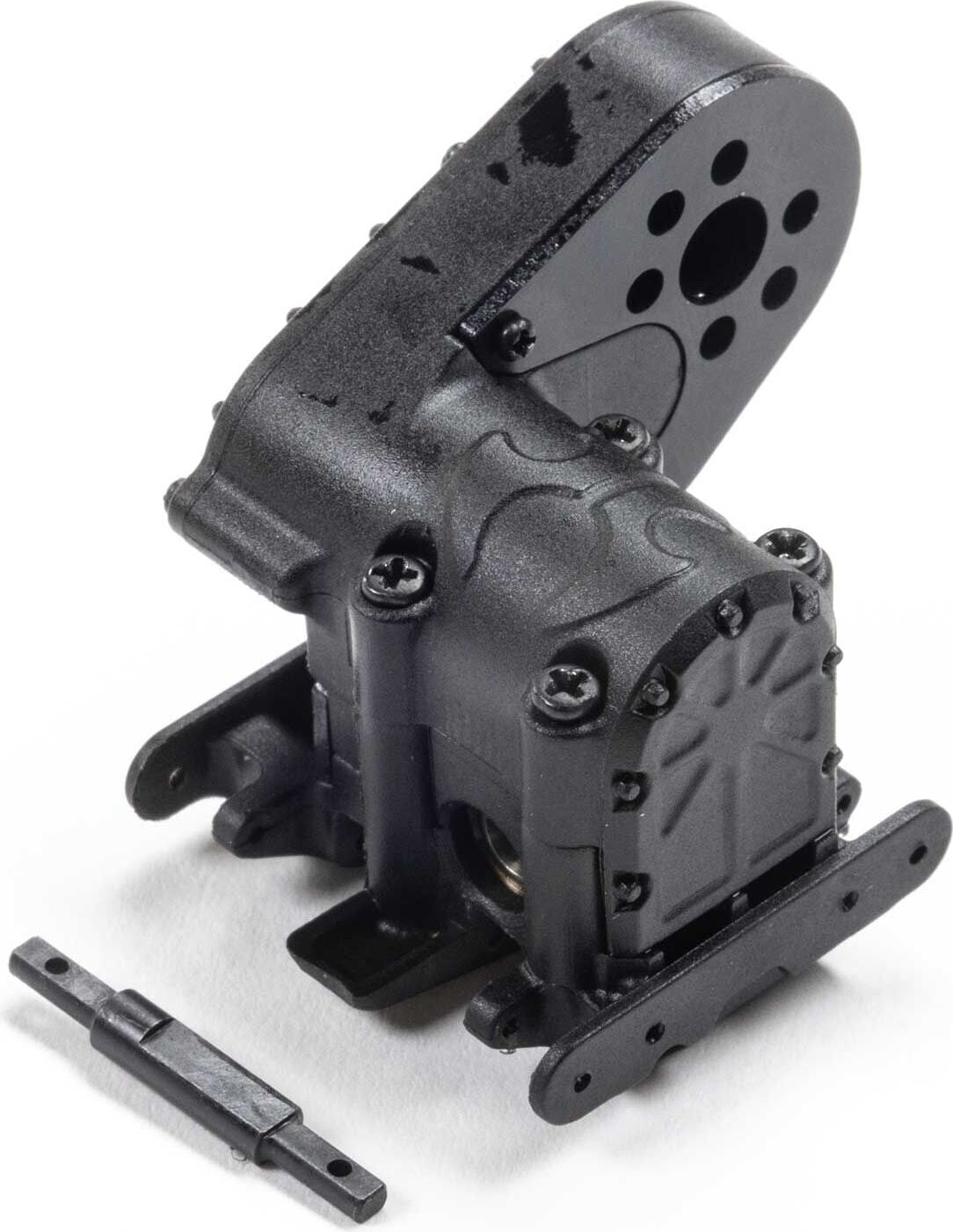

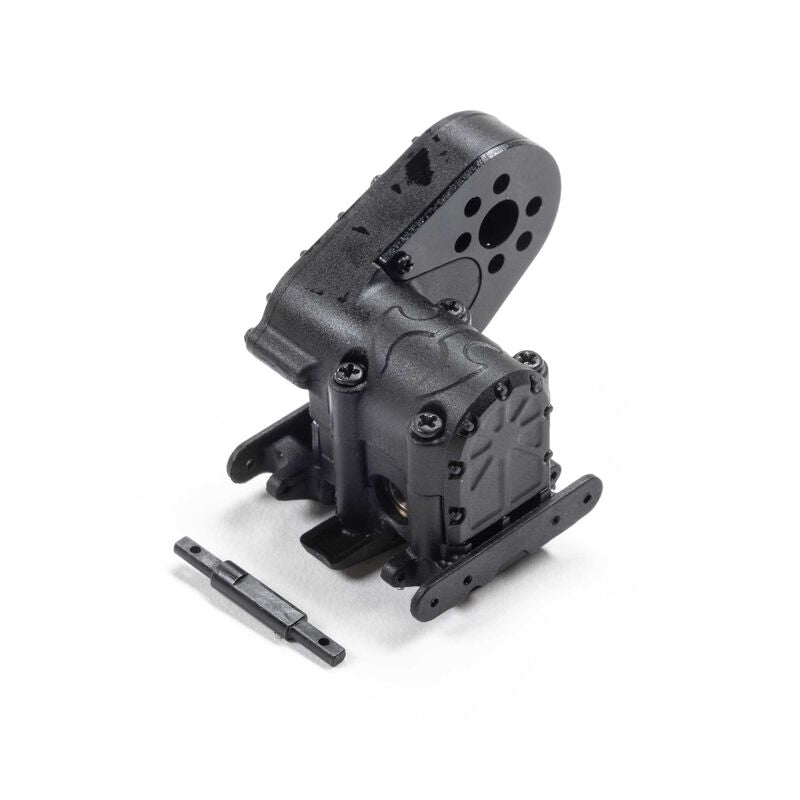

- A fully assembled SCX30 transmission
- Includes an idler and transfer gear that drives the 2/12T worm gears
In The Box
- Transfer Gear, Mod 0.3, 30T, Trans - 1
- Idler Gear, Mod 0.3, 40T, Trans - 1
- Screw, M1.4 x 0.3mm x 5mm, Button Head - 1
- Pinion, Worm Gear, 2T, 2/12T, Trans - 1
- Ring Gear, Worm Gear 16T, 2/12T, Trans - 1
- Output Shaft, Trans - 1
- O-Ring, 3mm x 0.5mm - 1
- Screw, M1.0 x 0.25mm x 6mm, Button Head - 6
- Screw, M1.4 x 0.3mm x 12mm, Button Head - 4
- Screw, M1.0 x 0.25mm x 4mm, Button Head - 2
- Ball Bearing, 3mm x 6mm x 2mm - 2
- Ball Bearing, 3mm x 6mm x 2.5mm - 4
- Trans Cover - 1
- Trans Case, Upper - 1
- Trans Case, Skid Plate, Lower - 1
- Motor Plate, Trans - 1
