Tamiya TT-02 Type-SRX 1/10 4WD Electric Touring Car Kit
This is the Tamiya TT-02 Type-SRX 1/10 4WD Electric Touring Car Kit. An upgraded version of the TT-02 Type-S kit Series that comes loaded with Tamiya Hop-up parts, 37mm drive shafts, aluminum propeller shaft and lightweight aluminum joint cups to reduce 7.8g of the weight, making this kit a capable performer out of the box and a great option to start racing!
Note: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Required to Complete:
- 2-channel radio
- Steering servo
- ESC
- 540 Motor
- 7.2-7.4volt battery with compatible charger
- Body
- Tires
Included Hop-up Option Parts:
- Item 22054: 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
- Item 22049: XV-02/TT-02 Oil Gear Differential Unit
- Item 22047: XV-02/TT-02 Front Direct Coupling Set (39T)
- Item 54981: 06 Module Hard Coated Aluminum Pinion Gear (27T)
- Item 54886: TRF419 Suspension Upgrade Set
- Item 54799: TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)
- Item 54501: TT-02 Aluminum Propeller Shaft
- Item 54500: TT-02 High Speed Gear Set (68T)
- Item 53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
- Item 53576: TRF Damper Oil Seal (4pcs.)
- Item 42357: Cross Joints for Low Friction Assembly Universal Shafts
- Item 42323: Short Ball Connector Nuts for TRF Dampers (8pcs.)
- Item 42143: 4mm Aluminum Serrated Wheel Nut (4pcs. /Blue)
Features:
- The rear oil-filled diff gear unit and front direct spool ensure ease of assembly and stable drivability.
- Diff. joint cups are lightweight aluminum and give a weight reduction of 7.8g compared to Item 22049's standard ones.
- Direct cups are designed for this chassis kit for improved durability.

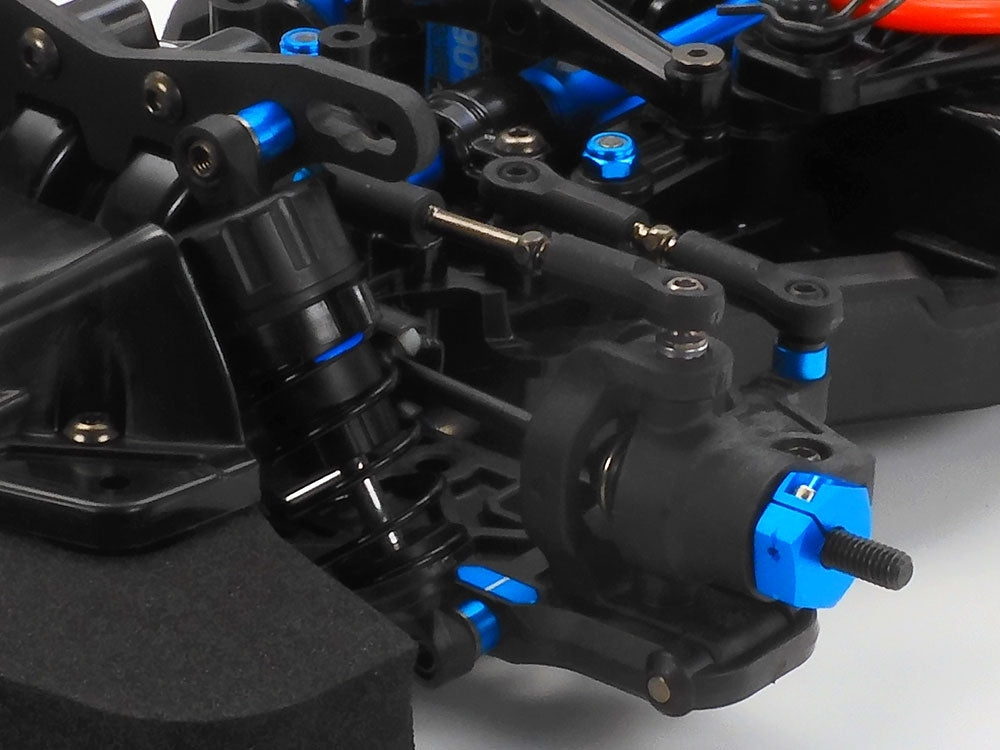

- This chassis kit features dependable 4-wheel independent double wishbone suspension from Item 42345 (1/10 R/C TRF420 Chassis Kit) for effective setup options.
- Newly shaped propeller joints are compatible with swing shaft protectors. These parts use plastic parts at joint sections with stainless pins and aluminum joints to limit wear of parts.

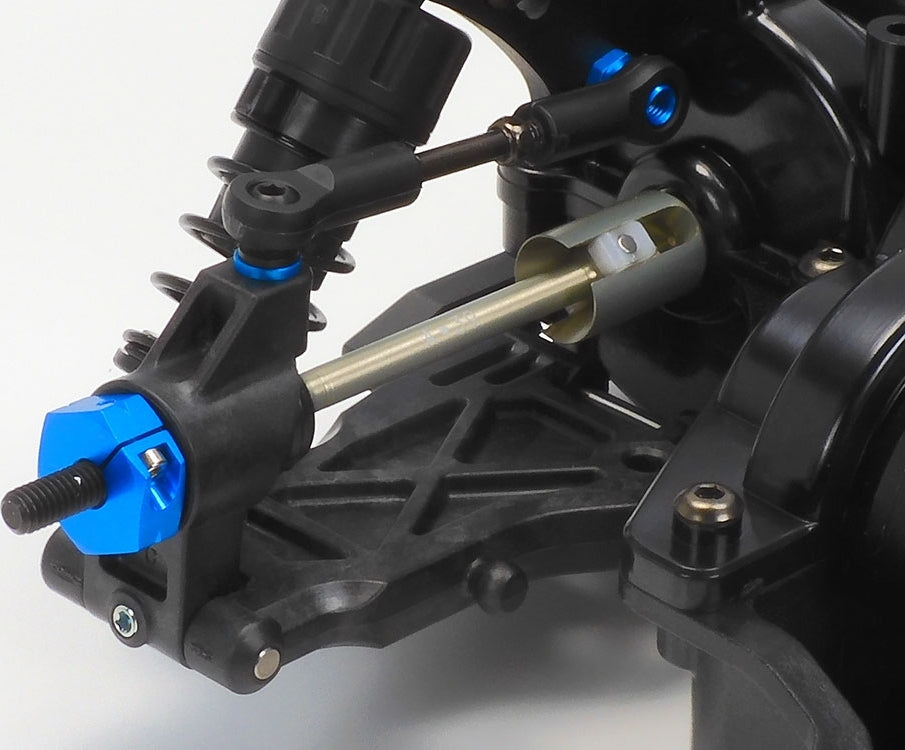

- Uses Item 22054 37mm Drive Shafts which allows stable steering and cornering for superior performance at races.
- Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance durability and lubricity.
- High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
- Included TT-02 hi-torque servo saver allows steering angle limit to prevent damage of steering servo.
- Includes full ball bearings.
- Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.
- The kit comes with a hi-torque servo saver as standard, to help protect the servo and steering linkage from damage.
- TRF420 design suspension arms and uprights are employed, with durable cardan drive shafts.
- Dampers have a choice of three each of upper and lower attachment points: fine-tune to your heart's content!
- The front direct coupling gives stable handling, and here is paired with durable, dedicated joint cups.
- An aluminum propeller shaft is joined by propeller joints designed especially for use with the included plastic anti-wear caps.

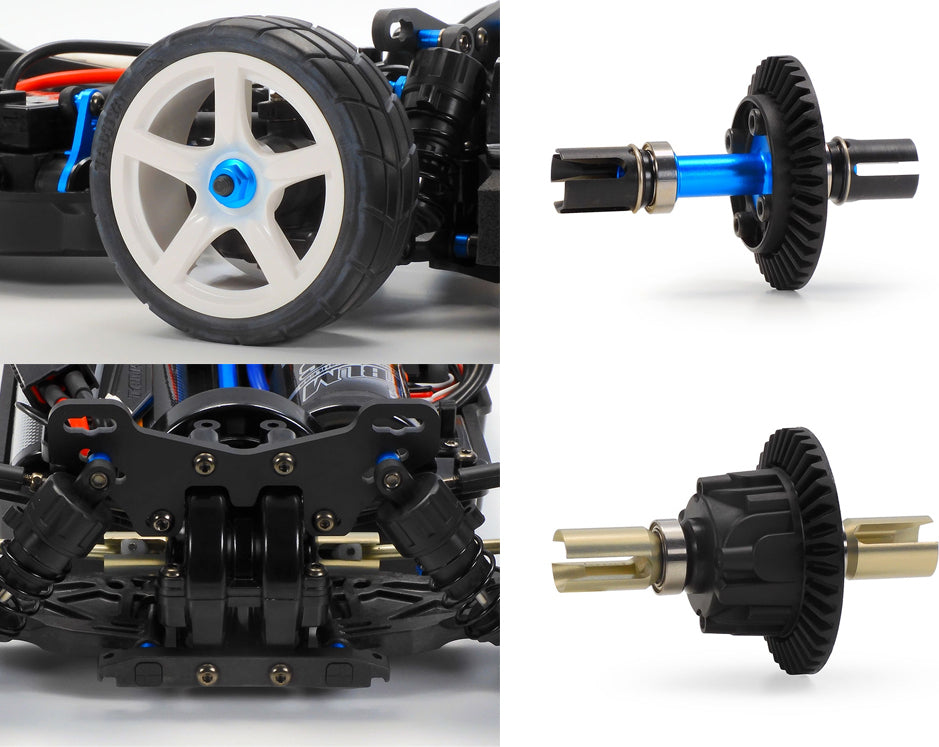

- The rear oil gear differential features lightweight yet durable aluminum joint cups.
- The rear suspension setup can be altered using plastic bushings in the mount, fine-tuning toe and skid angles.
- Rear 39mm drive shafts have been given a low-friction, highly durable hard coating.
- Dampers have 6 upper and 3 lower attachment position options.
- 5-spoke whe
