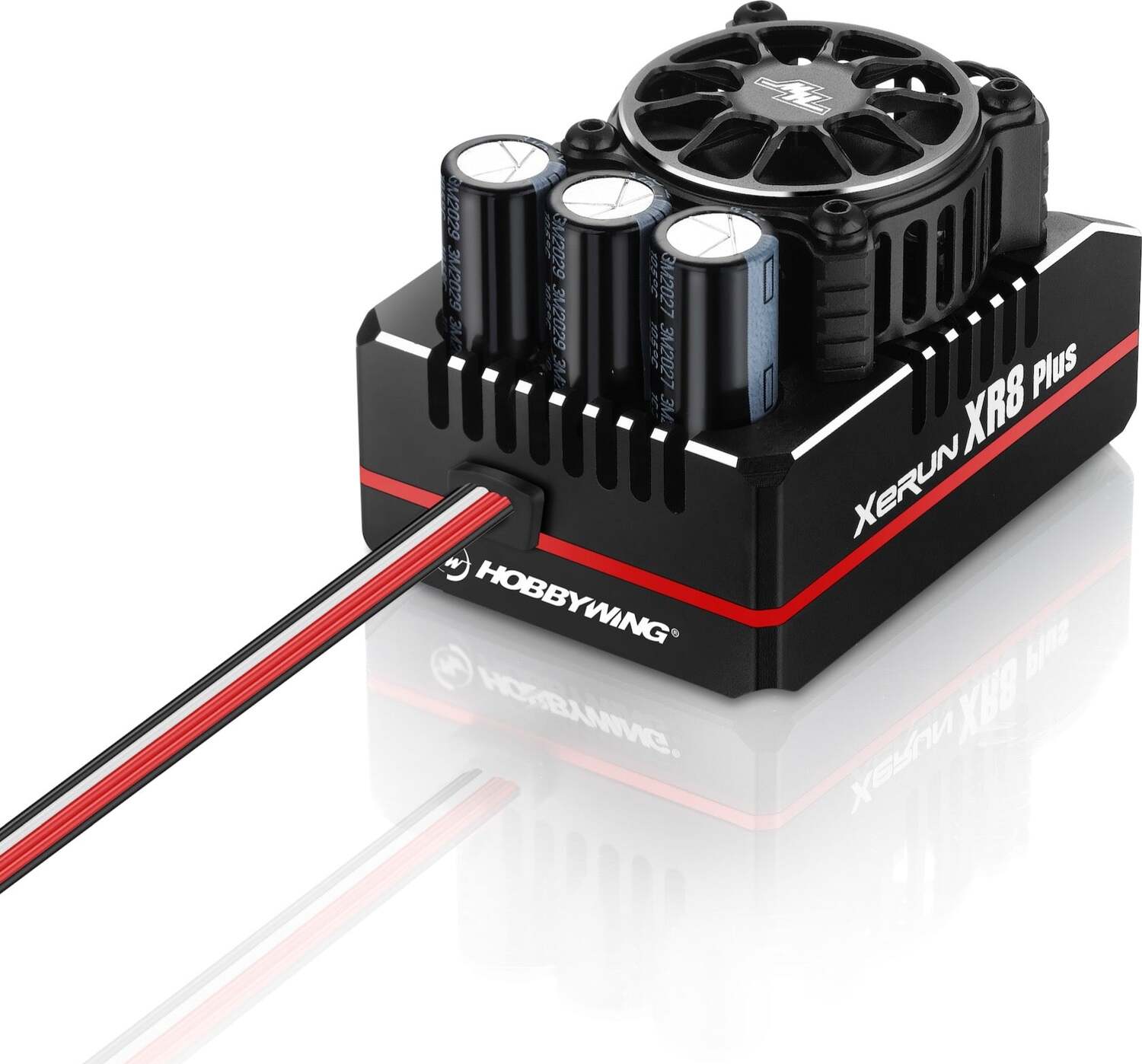

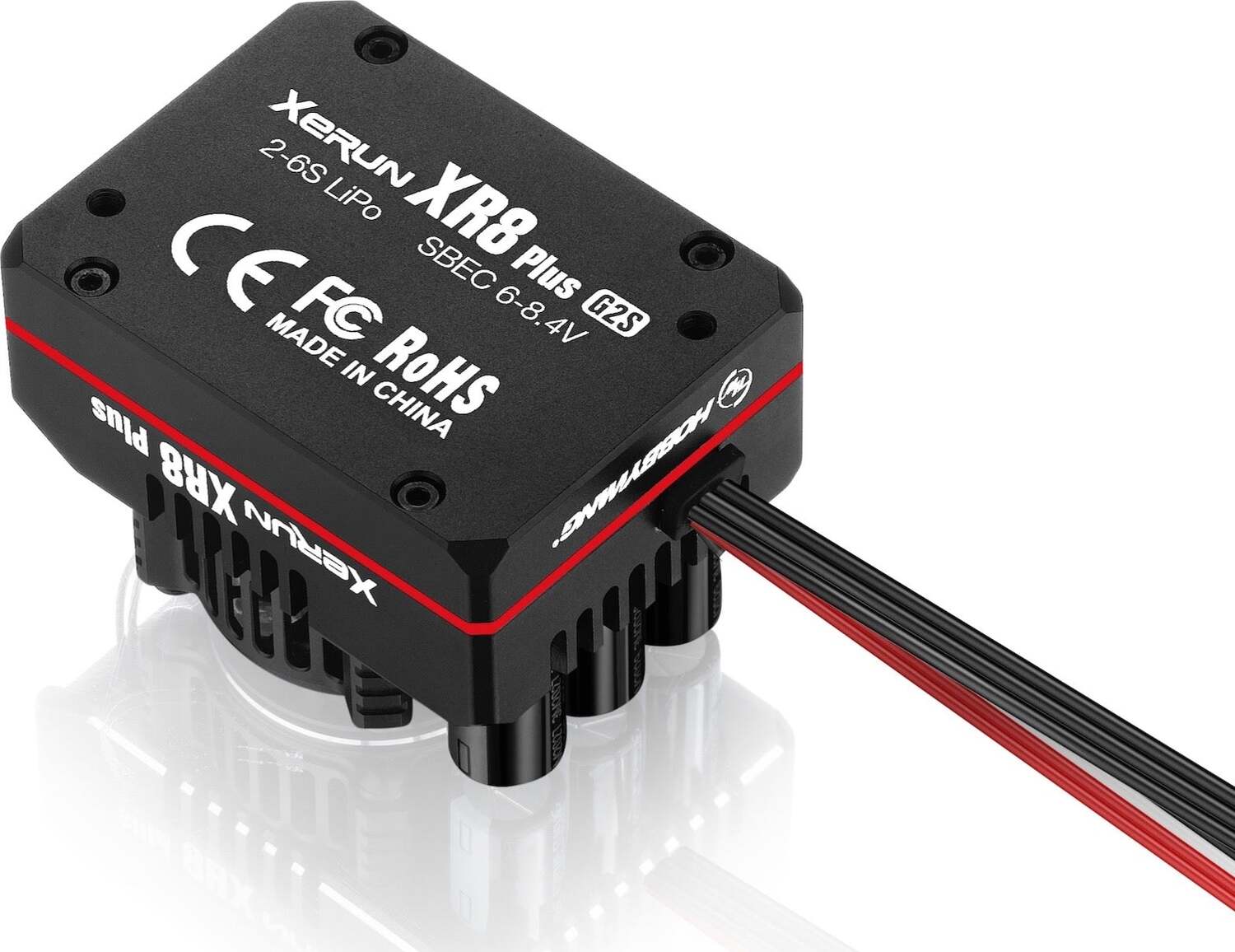

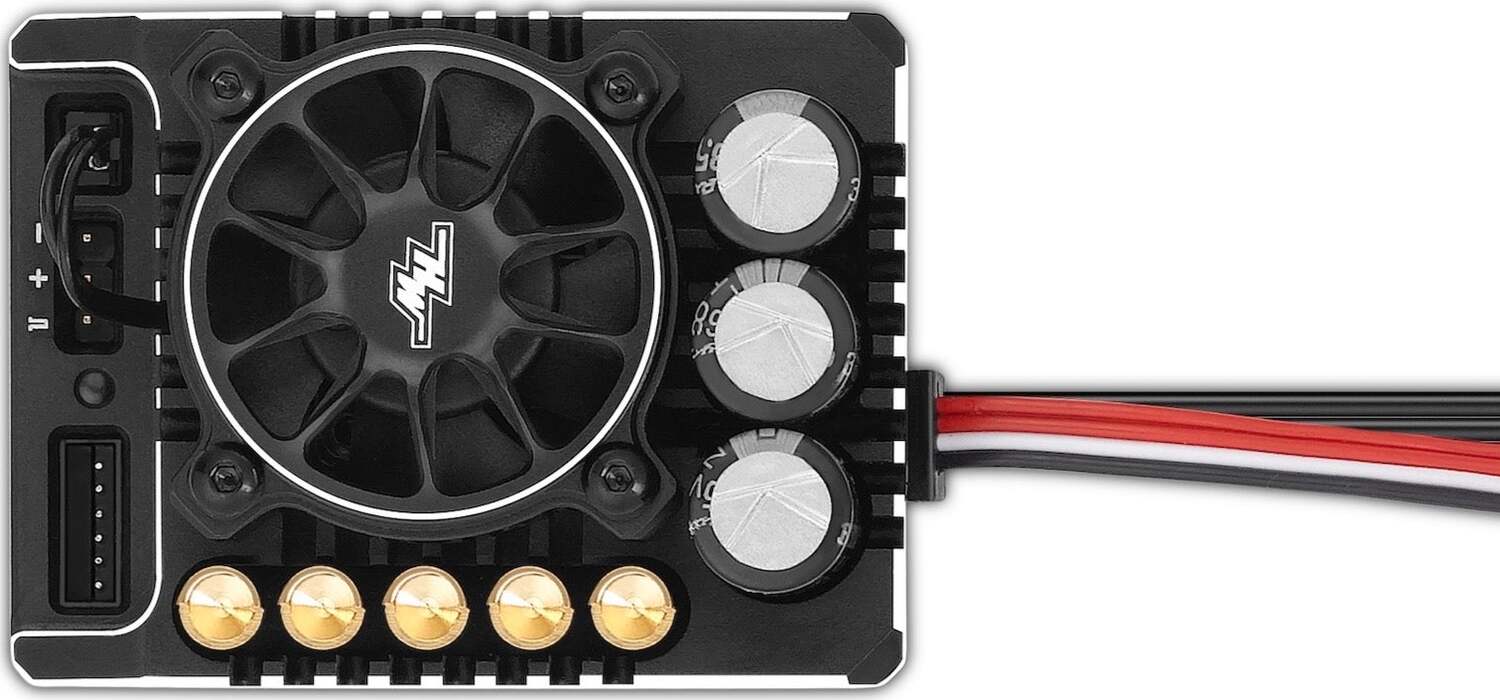

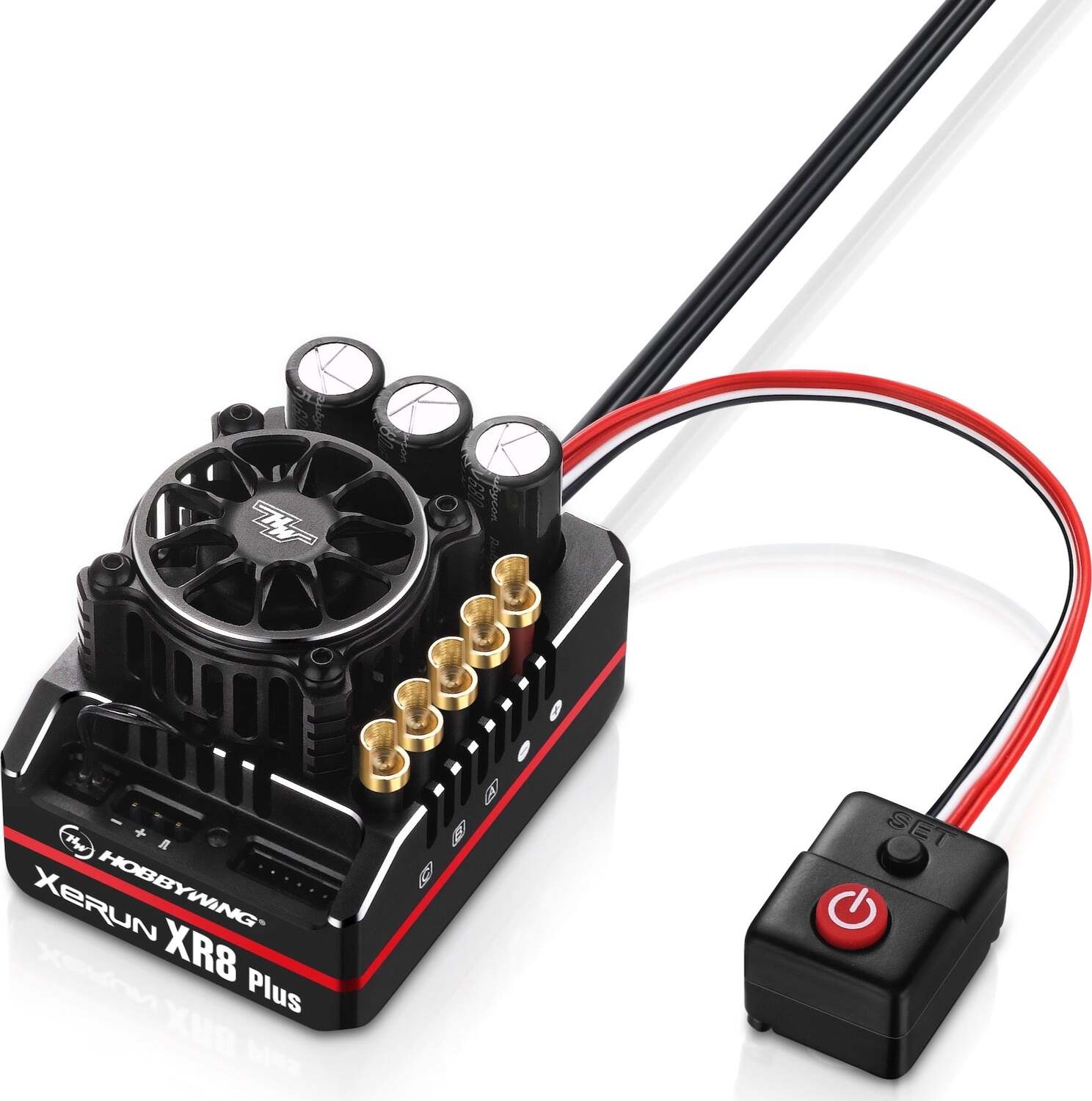

The Hobbywing Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC is the next level in 1/8 competition ESC's. Advancements have been made allowing this ESC to support 48° of boost and turbo timing. When combining this ESC with an optional 4268/4274 G3 motor, the maximum speed can be promoted by 50%. For added protection, this ESC is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform.
NOTE: Use appropriate settings provided by the factory or team drivers. Check operating temperature in order to maximize your electronics. The wrong settings may damage the ESC or motor.
All sales final. No returns or refunds.
Features:
- Efficient heat dissipation system with lower temperature rise
- Durable frameless fan
- Internal Reverse Polarity Protection Circuit
- RPM speed limit function
- Easy Obtain Running Status with Real-time Data Recording Function
- Multiple Programmable Items
- Capacitor Thermal Protection
- Super Internal BEC
- Excellent dustproof performance
- Ultra-soft 11AWG silicone wire
- Customized solder tabs, easy to solder
Specifications:
- ESC:
- Scale: 1/8th
- Waterproof: No
- Continuous/Peak ESC Current: 200A/1080A
- Input Voltage: 2-6S Lipo
- BEC Output: 6-8.4V Adjustable,
- Continuous/Peak BEC Current: 6A/15A(Switch-mode)
- ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
- Firmware Upgrade: Supported
- Size: 56.1mmx42.1mmx38.5mm
- Weight: 122g(w/wires)
- Applications: SL BL Motors/SD BL Motors
- Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
- KV Rating/T Count: 4S LiPo? 4268/4274?3000KV - 6S LiPo?4274?2400KV
- Fan:
- Size: 30x30x10mm
- Voltage Range: 5-8.4V
