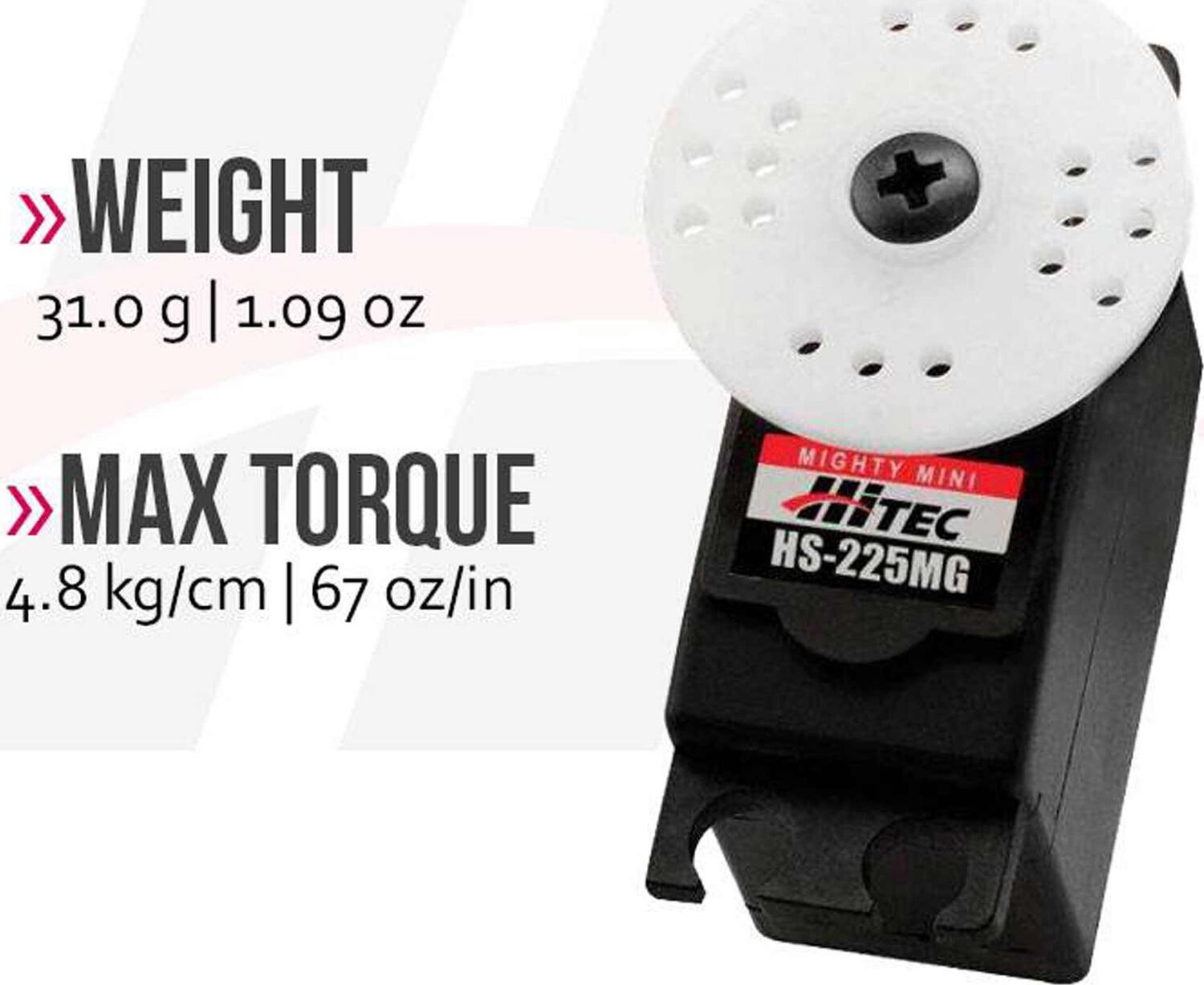

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
- Speed: @4.8V .14sec/60' / @6.0V .11sec/60'
- Torque: @4.8V 54.15oz/in / @6.0V 66.65oz/in
- Full Size Performance in a Mini Package
- Durable Metal Gears
- Top Ball Bearings
- Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo
Product Details

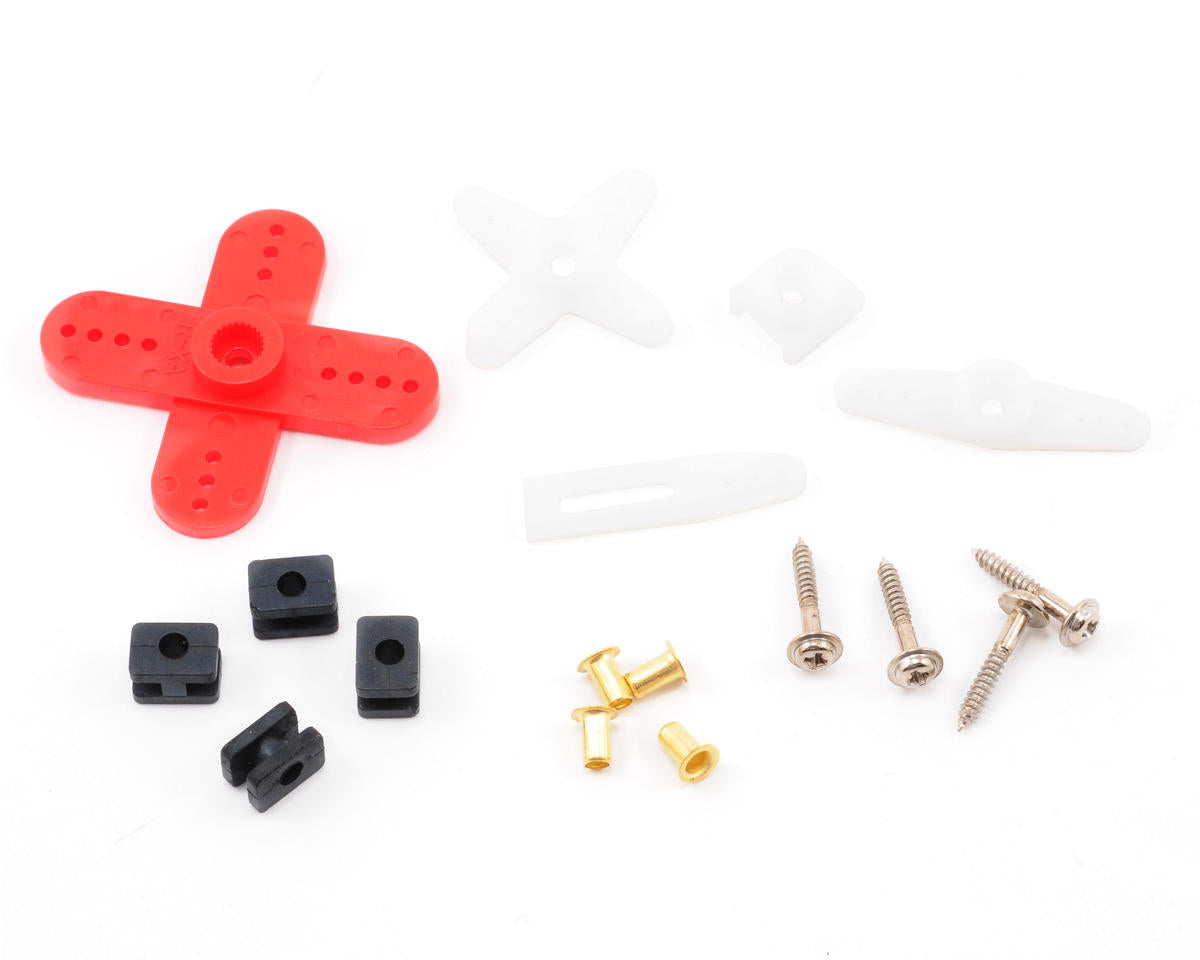

In The Box
HS-225MG Mini Analog Metal Gear Servo
Product Specifications
Application: Small Aircraft, Helicopters, Cars, Boats
Product Weight: 1.09oz (31.0g)
Spline Count: 24 - Tooth
Water-Resistant: No
Programmable: No
Servo Size Category: Mini
Maximum Servo Torque: 54oz/in @ 4.8V, 67oz/in @ 6.0V
Connector Type: Universal
Maximum Servo Speed: 0.14 sec/60 deg @ 4.8V, 0.11 sec/60 deg @ 6.0V
Product Length: 1.27" (32 mm)
Bearing: Top Ball Bearing
Bushing Or Bearing: Bearing
Current Draw Stall: 1,200 mA
Motor Type: Brushed
Servo Operating Voltage: 4.8 - 6.0V
Current Draw Idle: 8mA
Product Width: 0.66" (17 mm)
Gear Type: Metal
Wire Gauge: 25 AWG
Deadband: >5µs
Input Voltage: 4.8V - 6.0V
Product Height: 1.22" (31 mm)
Servo Type: Analog
