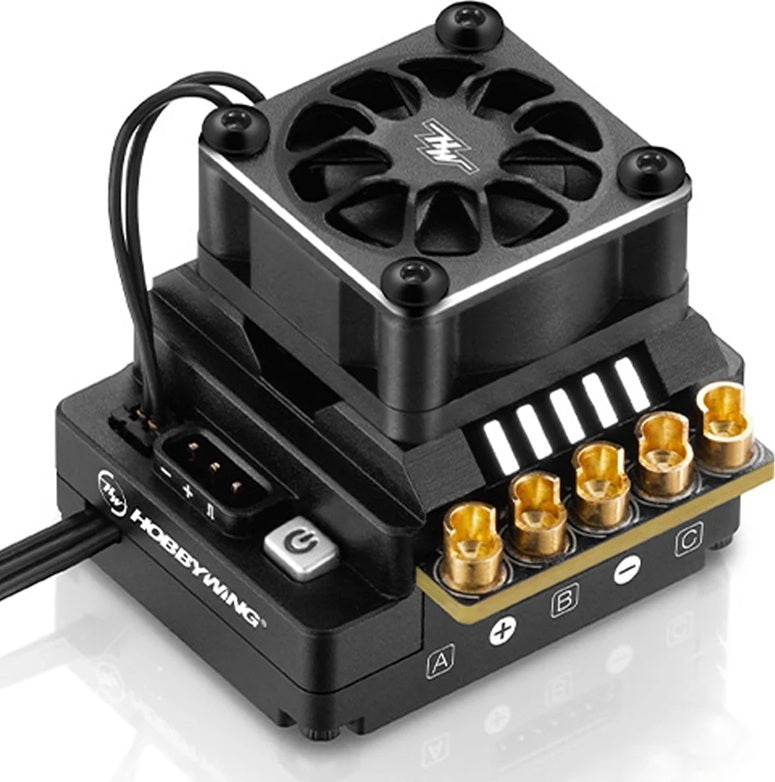

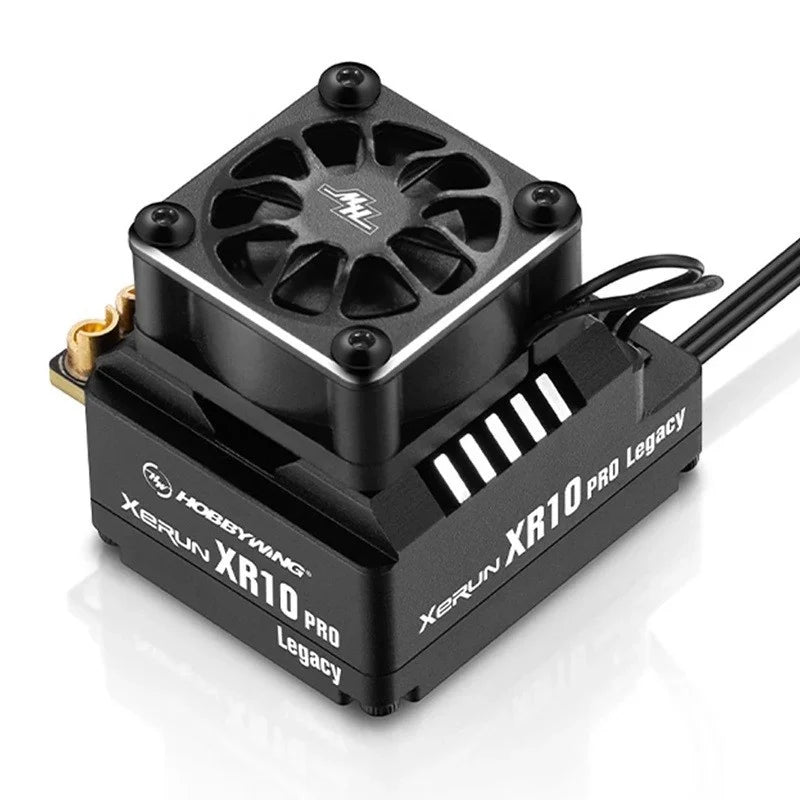

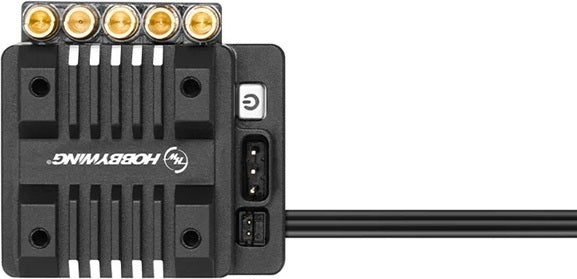

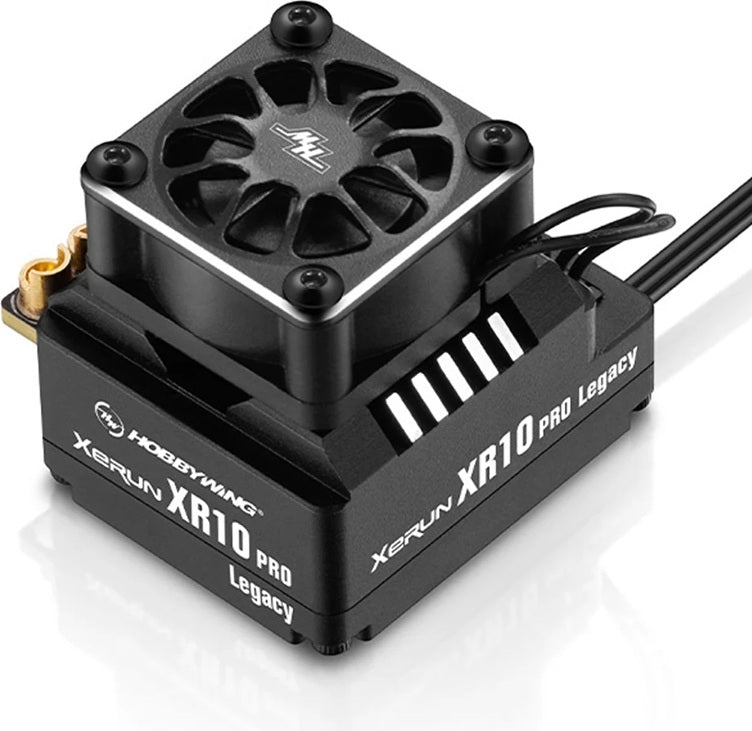

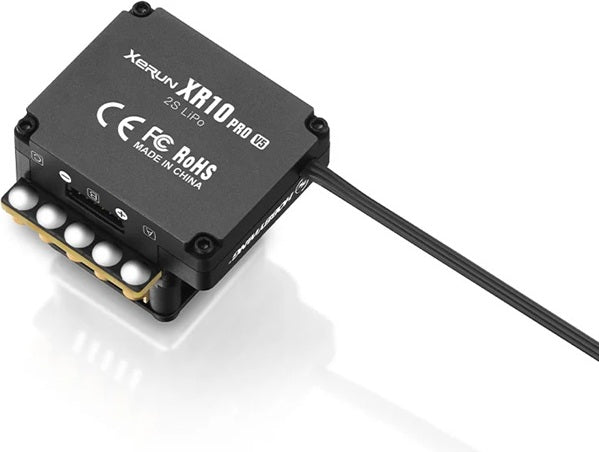

New from World Champion electronics manufacturer Hobbywing comes the XeRun XR10 Pro Legacy ESC. Suitable for 1:10 Onroad and Offroad racing across both Modified and Stock classes, it is powered by a 32-bit M4 processor which delivers lightning-fast response, and handles more data with precision. Weighing 94.2 grams, including wires & connectors, key functions of the ESC include Hobbywing’s patented Softening Function as well as Smart Fan technology that runs the fan only when needed. This temperature controlled fan circuit prolongs fan life and improves overall performance. Measuring 37.7 X 37.0 X 33.2mm, the Legacy now includes built-in maximum output current up to 10A switch-mode BEC. It also gets Reverse Polarity Protection and an external OTA makes parameter tuning and firmware upgrades more convenient. Hobbywing’s Link mobile app allows access real-time data monitoring – Monitor throttle, voltage, temperature, RPM and other data, while the OTA’s built-in memory records everything for detailed post-race analysis to fine-tune performance like never before.
Features:
- 9 select-to-use profiles applicable to all 1/10th RC car racing.
- Separate programming port to power an external fan or connect an LCD Program Box Pro or OTA Programmer to the ESC.
- Variable frequency regulation of PWM and brake frequencies allows users to precisely regulate the driving and braking forces of the motors.
- Softening function (innovative by HOBBYWING) for power delivery tuning and better driving efficiency.
- Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
- Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module.
- Firmware upgrade via Hobbywing LCD Program Box Pro or OTA Programmer (item sold separately).
