Iron Quad XplorerHD HD Camera Module

Everyday is a New Adventure! Xplore your surroundings with HD live feed along with built-in headtracking as you can look up, down, and to the sides. A unique and immersive experience as the real-time stabilization will simulate like you are in your favorite R/C vehicle. Don't forget to share, as 32gig of on board memory will allow you to share your adventures.

*The CAM ONLY option is for existing customers who have purchased the goggle or RTR kit!*

Product Specifications:

XplorerHD

• Unit Size: 100mm Length, 49mm Width, 63mm* Height. (Added height measurement to clear gimbal movement)
• Weight: Approx 102g / 4oz (unit only)
• Camera Size: 19mm
• Image Sensor: 1/1.8in Sony Starvis2 Sensor
• Resolution: 1080p/60fps; 720p/100fps; 720p/60fps
• FOV: 160°
• Aperture: F1
• Minimum Illumination: 0.0001Lux
• Max Speed: +/- 1500°/s
• Max Movement Range
  • Yaw: +/- 160°
  • Pitch: +/- 120°
  • Roll: +/- 60°
• Size: 1.84x1.82x2.1"
• Weight: 46g*
• Input Voltage: 7-26v (recommend atleast 10v)

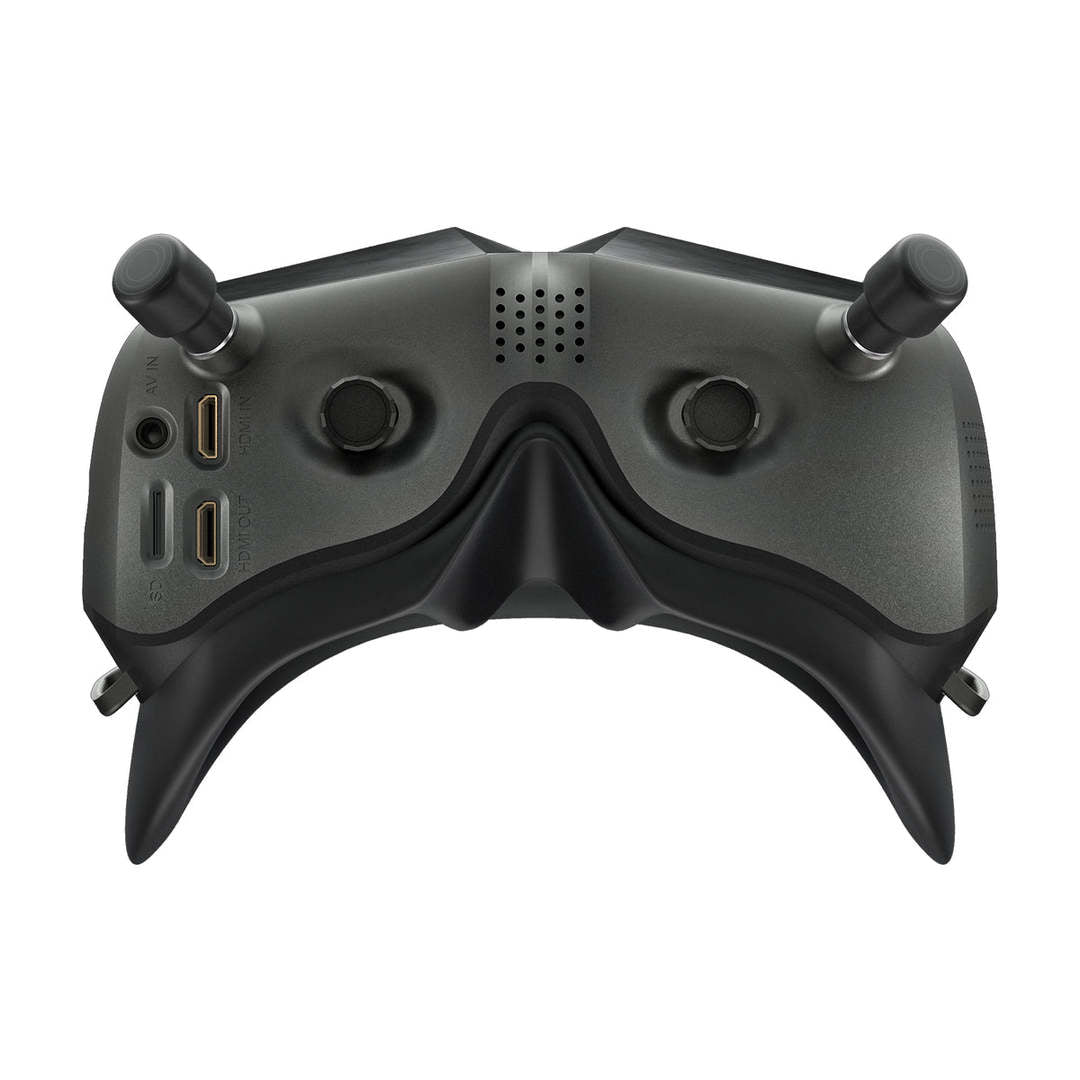

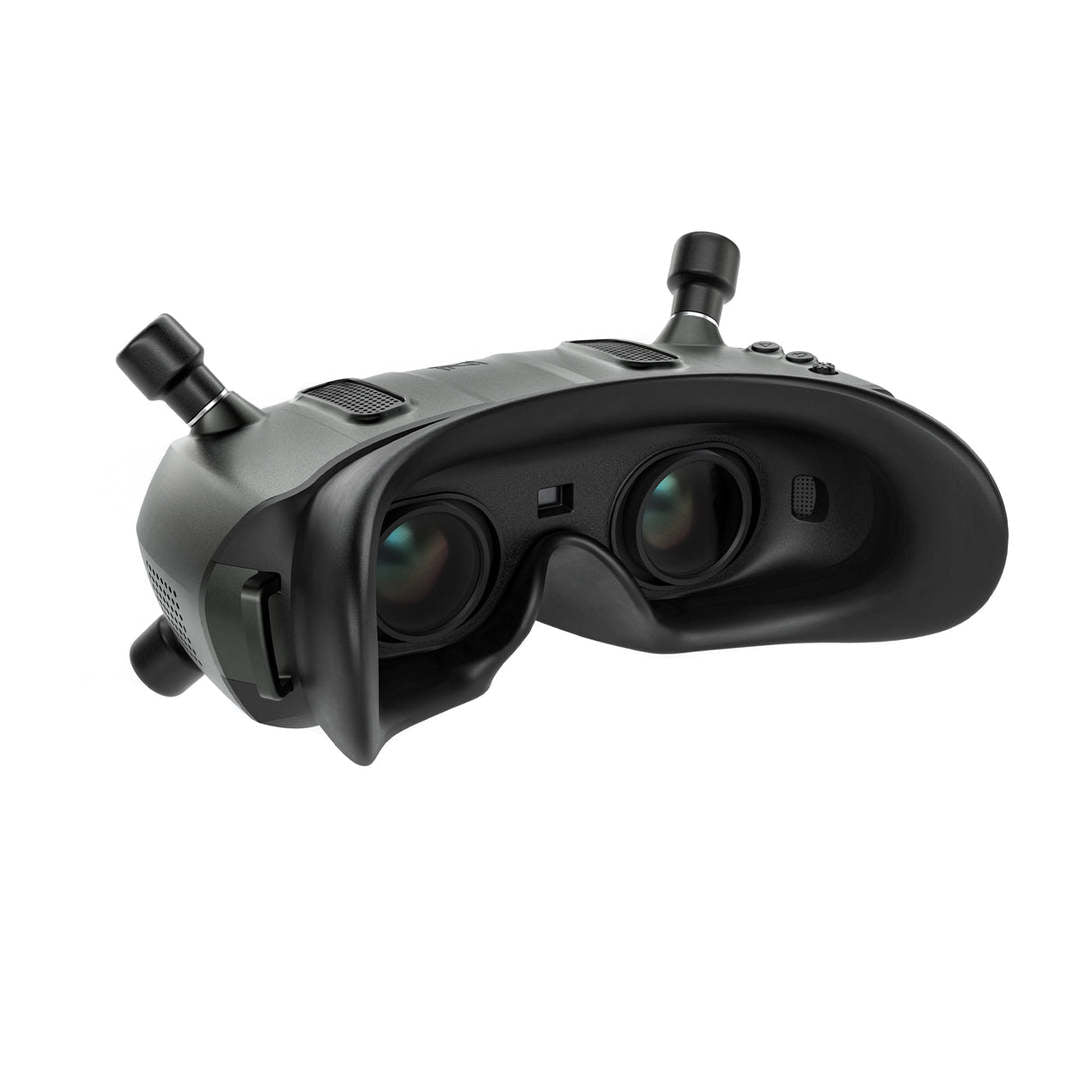

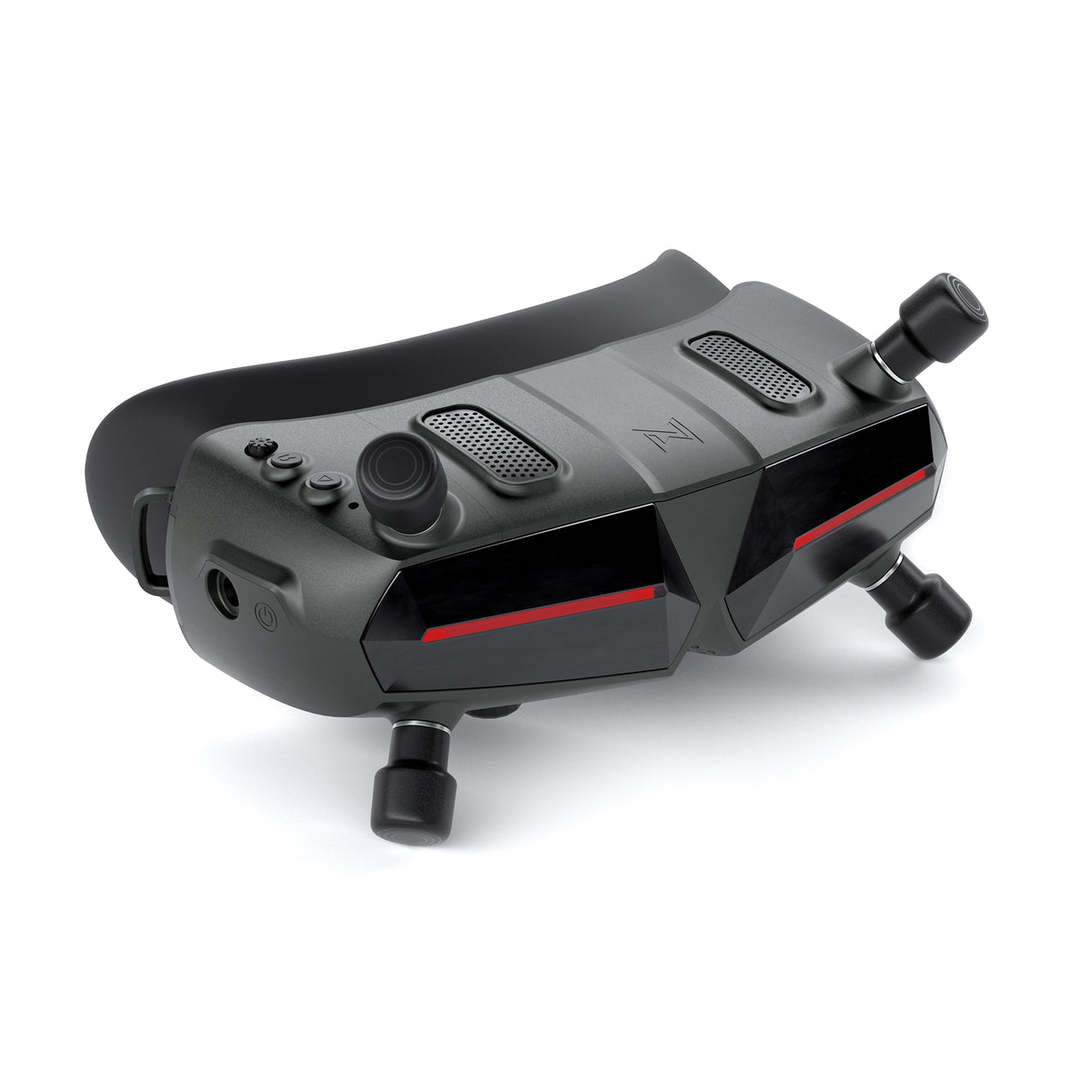

Walksnail Avatar HD Goggles X FPV System

Introducing the Walksnail Avatar HD Goggles X, a groundbreaking leap in FPV goggles technology. With a comprehensive range of new features and enhancements over its forerunner, the Avatar Goggles X is vying for the title of the most adaptable FPV Goggles available today. It offers support for Walksnail, Analog, and HDZero, all at an exceptionally competitive price point.

Key Features

• 1080P 100fps Resolution: Enjoy crystal-clear visuals with minimal latency.
• Wide 50° FOV: Provides an immersive FPV experience.
• Diopter Customization: Adjustable focus range from +2.0 to -6.0 diopters for a glasses-free option.
• Interchangeable Lenses: Cater to astigmatism, myopia, and blue light-blocking needs.
• Lightweight Design: Weighing only 290g, ensuring comfort during extended use.
• Removable Upper Part: Enables effortless module replacements to stay updated with the latest technology.
• Built-in Bluetooth Wi-Fi Module: Currently in development for app connectivity.
• Built-in Gyro: Extends utility beyond FPV to fixed-wing RC cars and other scenarios.
• Infrared Sensing: Energy-efficient screen on/off toggling without manual buttons.
• Front Cover Customization: Allows for antenna customization and personal DIY designs.
• HDMI Input/Output: Expands compatibility with various devices and allows real-time flight footage sharing.
• Wide Compatibility: Supports 7-26V power input (2S-6S).

Specifications

• Communication Frequency: 5.725-5.850GHz
• Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
• I/O Interface: HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot
• Transmission Resolution: 1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps
• Code Rate: Max 50 Mbps
• Min. Latency: Average 22ms
• Average Gain: 2dBi
• Polarization: LHCP
• Transmission Distance: >4km
• Channel: 8
• Screen Resolution: 1920*1080/100Hz
• Screen Material: OLED
• IPD Mechanical Range: 54mm-74mm
• Adjustable Focus Range: +2.0 to -6.0 Diopter
• FOV: 50°
• Power Input: 7-26V (2S-6S)
• SD Card Support: Up to 256G
• System: Avatar HD system
• Foam Material: PU
• Built-in Wi-Fi: Yes
• Built-in Gyro: Yes
• Built-in Bluetooth: Yes

Included in the Box

• 1x Walksnail Avatar HD Goggles X
• 1x Wide Foam (PU)
• 1x Lens Cleaning Cloth
• 1x XT60 to DC 5.5*2.1mm Power Cord
• 1x Storage Box

Additional Features

• App Development: Walksnail is developing an app that supports wireless firmware updates, flight controller adjustment, and social media sharing, eliminating the need for cumbersome computer operations.
• H.265 Encoding Technology: Provides 1080p/100FPS FPV video quality with low latency for an immersive experience.
• Versatile AV IN Interface: Supports analog signals for a versatile FPV solution.
• Removable Front Cover: Allows for easy antenna and receiver module replacements, offering a cost-effective way to upgrade your goggles.
• Infrared Sensing Technology: Conveniently toggles the screen on and off, extending the screen's lifespan.
• Customization Options: Front cover can be personalized, and lenses can be replaced to meet various vision requirements.
• Wider Pupil Adjustment Range: Improved optical clarity suitable for different face shapes, ensuring a comfortable and secure fit.

The Walksnail Avatar HD Goggles X is designed for long-term use, allowing pilots to maintain the latest technology without needing to replace the entire goggles. Enjoy an unparalleled FPV experience with these innovative and versatile goggles.
