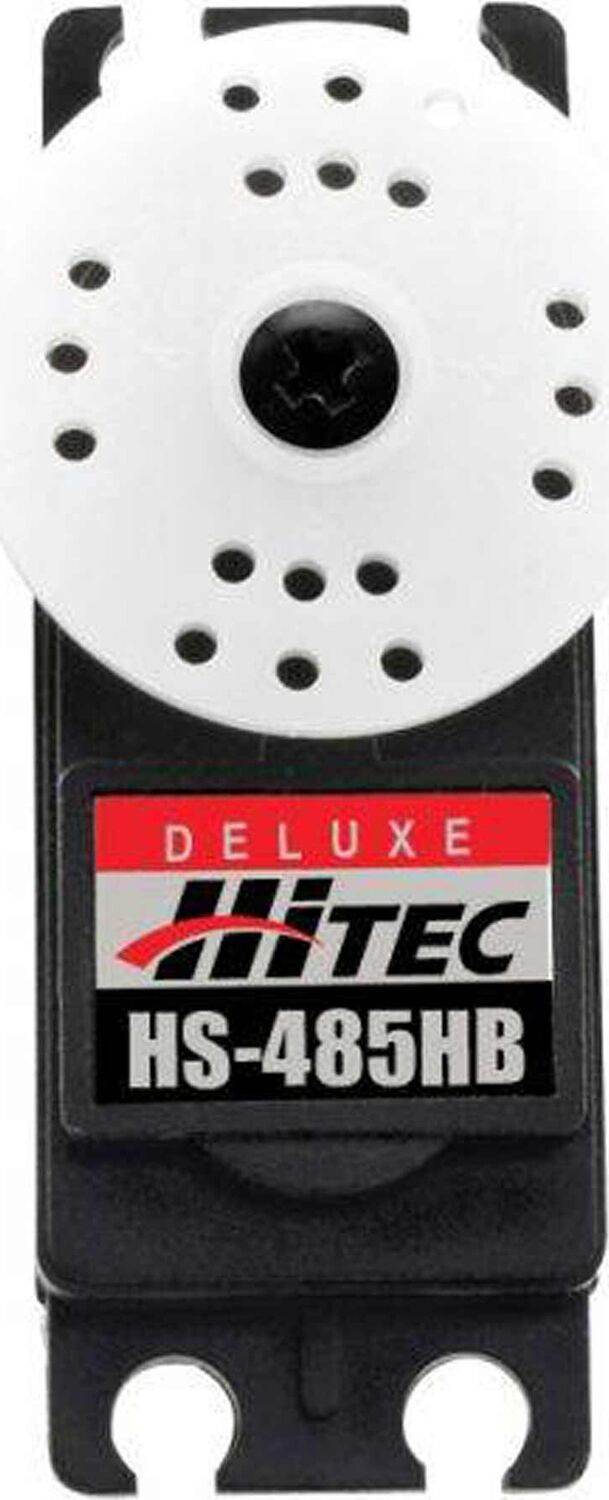

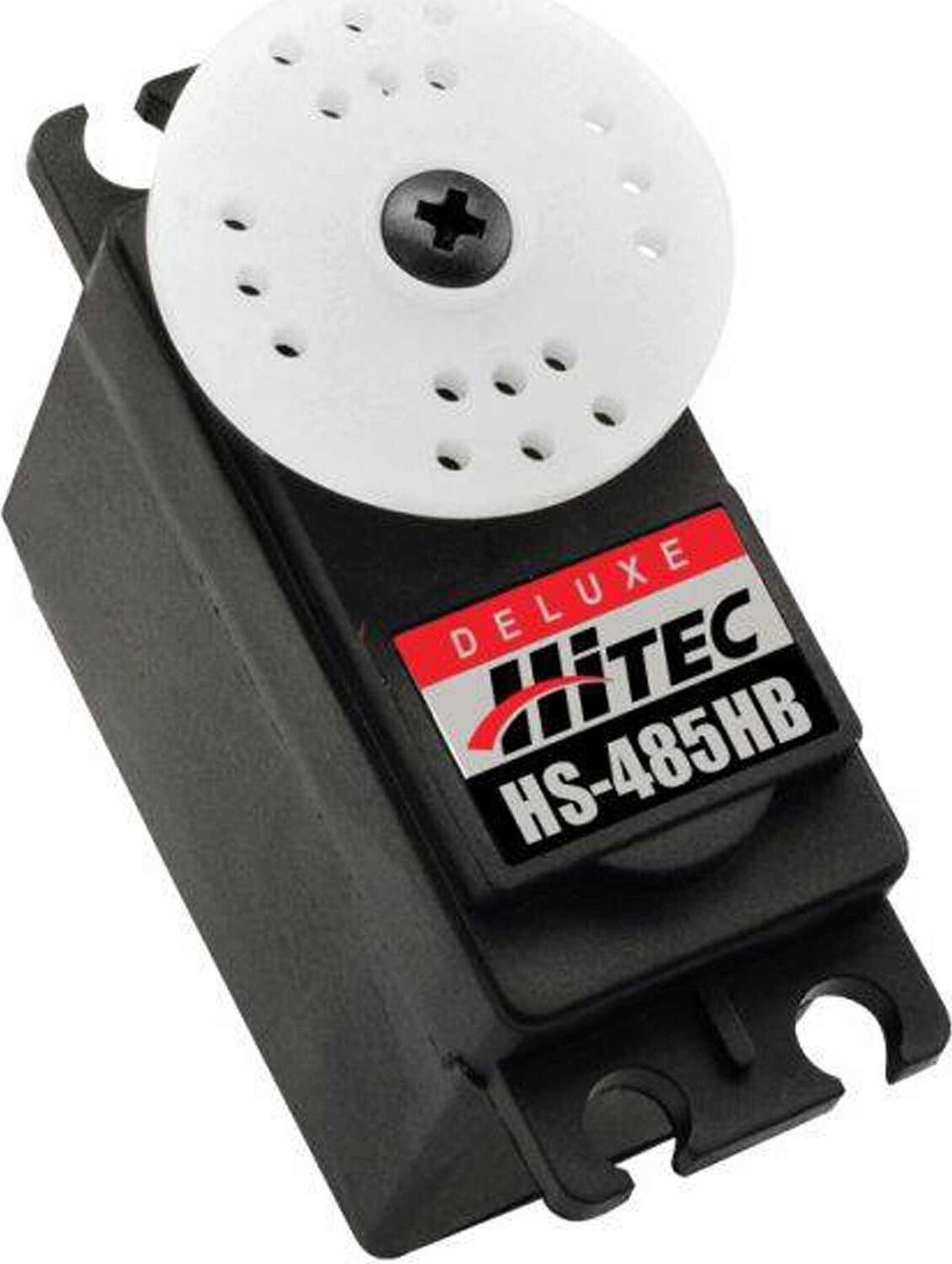

The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.
- Speed: @4.8V .22sec/60' / @6.0V .18sec/60'
- Torque: @4.8V 67oz/in / @6.0V 83oz/in
- Top Selling Heavy Duty Standard Servo
- High Impact Karbonite Gears
- Top Ball Bearings
- Excellent Centering and Resolution
Product Details

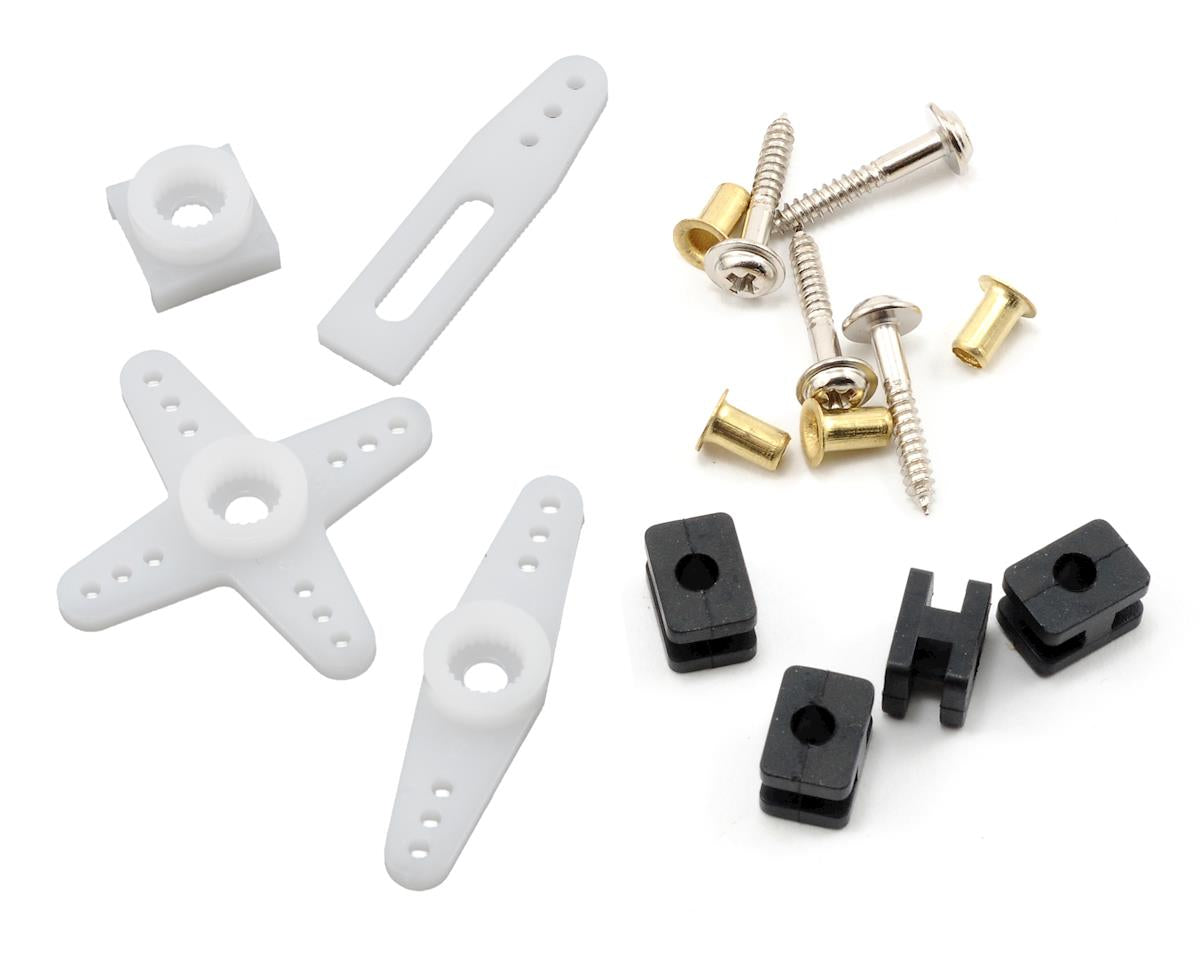

In The Box
(1) HS-485HB Standard Analog Karbonite Gear Aircraft Servo
Product Specifications
Current Draw Stall: 1,200 mA
Motor Type: Brushed
Servo Operating Voltage: 4.8 - 6.0V
Bearing: Top Ball Bearing
Bushing Or Bearing: Bearing
Gear Type: Karbonite
Wire Gauge: 25 AWG
Application: Glow, Electric Aircraft
Product Weight: 1.59oz (45.0g)
Spline Count: 24 - Tooth
Water-Resistant: No
Programmable: No
Servo Size Category: Standard
Connector Type: Universal
Maximum Servo Speed: 0.22 sec/60 deg @ 4.8V, 0.18 sec/60 deg @ 6.0V
Product Length: 1.57" (40 mm)
Maximum Servo Torque: 67oz/in @ 4.8V, 83oz/in @ 6.0V
Current Draw Idle: 10 mA
Product Width: 0.78" (20 mm)
Deadband: 3µs
Input Voltage: 4.8V - 6.0V
Product Height: 1.49" (38 mm)
Servo Type: Analog
