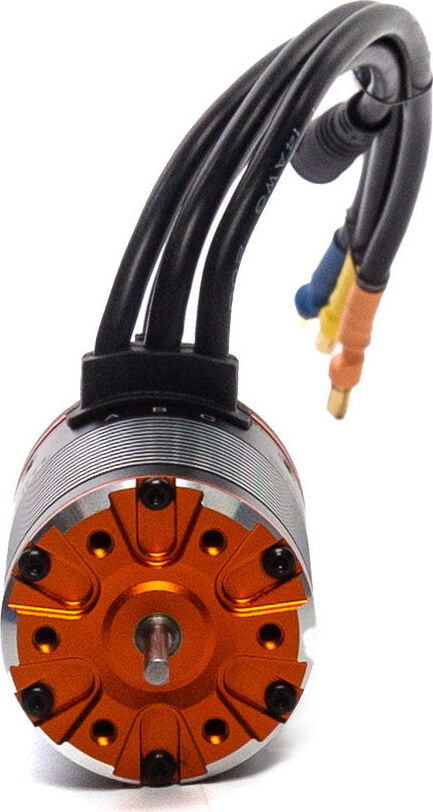

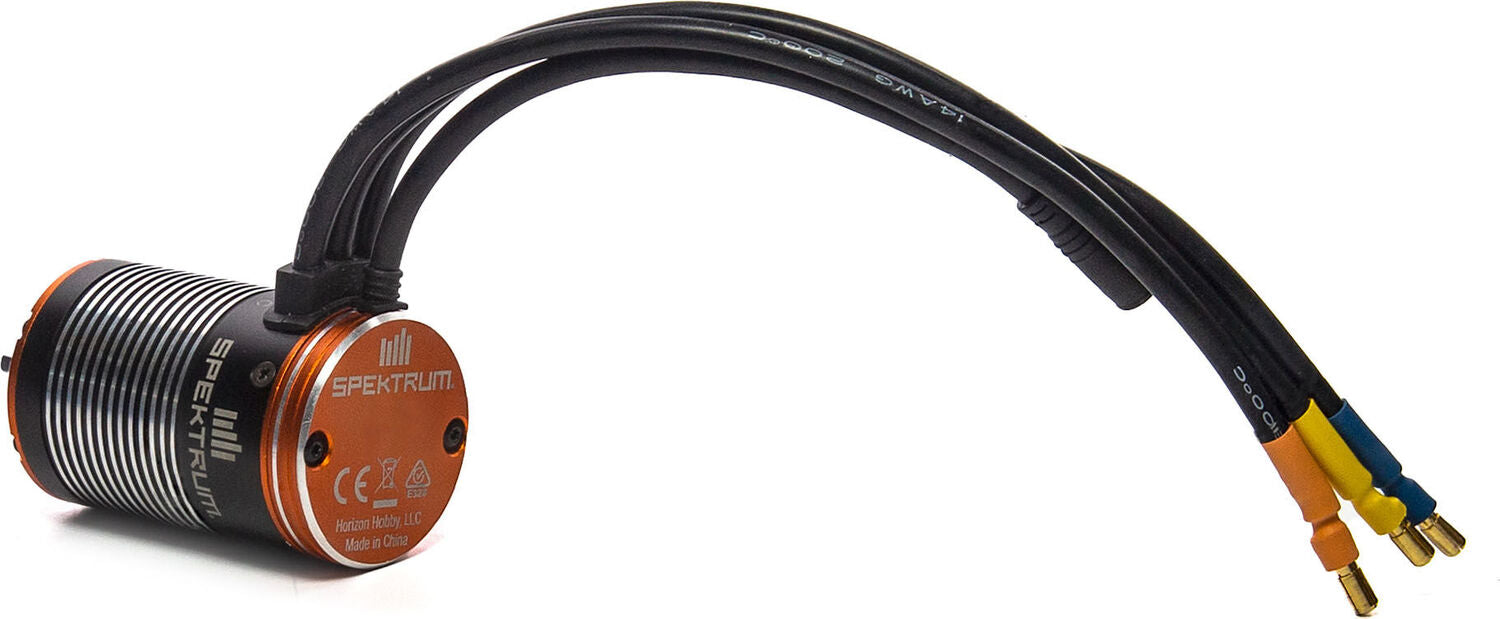

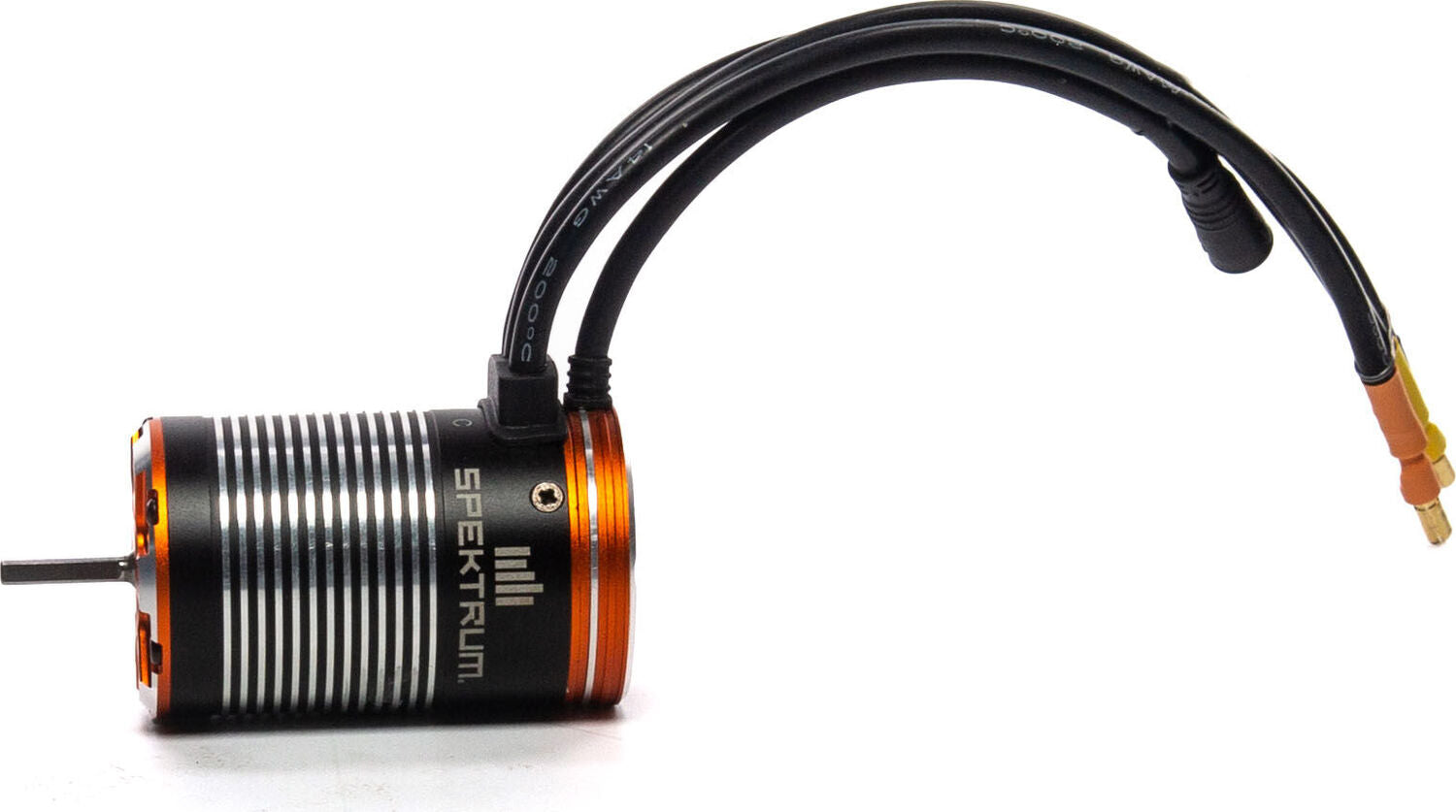

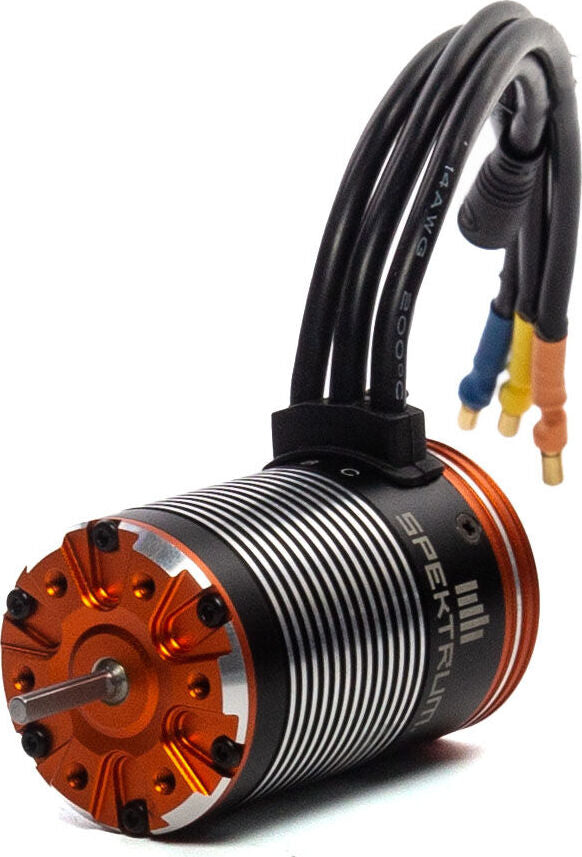

The Firma 2800Kv Brushless Sensored Crawler Motor by Spektrum is a quality built accessory.
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- Perfect for high speed off-road applications such as rock bouncers and rock racers
- High-quality 4-pole sintered rotor
- Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position.
- 3.5mm Gold Plated Bullet Connectors
Product Specifications
Constant Wattage: 500-749W
Motor Class: 1/10 Scale
Maximum Continuous Current: 50A
Motor Type: Brushless
Motor Size: 540-2800Kv Brushless Sensored
Product Length: 2.27" (58 mm)
Connector Type: 3.5mm Bullet
Bushing Or Bearing: Bearing
Forward: Yes
Reverse: Yes
Outer Diameter: 1.42" (36 mm)
Integrated ESC: No
Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Number of Poles: 4
Shaft Diameter: 0.125" (3 mm)
Water-Resistant: Yes
Input Voltage: 7.4 - 11.1V
Kv Rating: 2500-2999Kv
Motor Output Lead: 3.5mm
Product Application: Crawling, Surface
Recommended Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
RPM/Volt (Kv): 2800Kv
Sensored: Yes
Sensor Type: Sensored FOC
