The Tamiya Mercedes-Benz Unimog 406 CC-02 1/10 4WD Scale Truck Kit is a Limited-Edition version of the Unimog 406 Series U900. This version features a pre-painted body in Tamiya PS-32 Corsa Gray, unlike the standard kit in item TAM58692.
The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off-road performance and its name is an acronym which stands for the German description "Universal-Motor-Gerät." The 406, which also has the ability to equip any of approximately 3,000 attachments for every imaginable task, now is depicted on the proven Tamiya CC-02 chassis.
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road environments, including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.
Product Details
In The Box
(1) MERCEDES-BENZ UNIMOG 406 Kit
Needed to Complete:
- 2-channel radio
- Steering servo
- 7.2-7.4volt battery pack with Tamiya Connector
- Compatible charger
Features:
- 1/10 R/C model assembly kit
- Pre-Painted Polycarbonate body (Tamiya PS-32 Corsa Gray) with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem
- Includes block pattern tires, and red ABS wheels with a depiction of beadlock designs
- Propeller shafts (short: 76mm) included
- The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability
- A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear

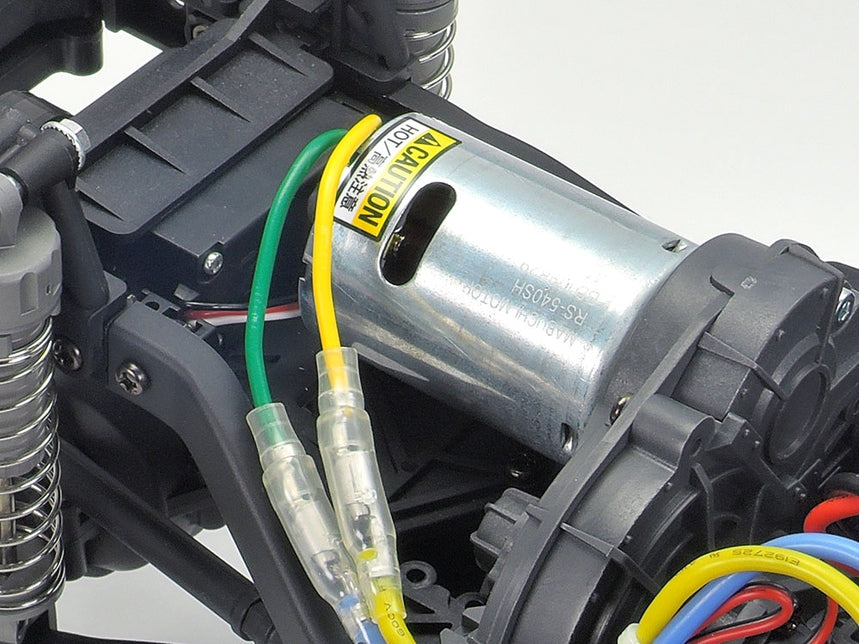

- Includes 540-brushed type motor
- LED lights included
- Includes TBLE-04S ESC - Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over
Product Specifications
Completion Level: Kit
Drivetrain: 4WD
Product Height: 8.8" (224 mm)
Product Width: 7.7" (196 mm)
Radio: Sold Separately
Scale: 1/10
Vehicle Type: Rock Crawler
Battery: Sold Separately
Product Length: 15.1" (384 mm)
Power Type: Electric
Servos: Sold Separately
Charger: Sold Separately
Motor Type: Brushed
Speed Control: Included
Wheelbase: 9.51" (242 mm)
