DT-04 Two-Wheel Drive All-terrain Off-Roader
Introducing the Fighter NXGEN! This 1/10 scale RC buggy draws inspiration from full-size single-seater racing buggies popular in the United States. Built on the DT-04 chassis, this 2WD rear-wheel-drive platform maintains the easy assembly and lively performance that define the Fighter series. The name "NXGEN" (Next Generation) reflects its enhanced off-road capabilities and expanded setup options compared to its predecessors. Additionally, the front and rear suspension arms, gears, and gearbox are shared with the DT-02 and DT-03 chassis, allowing compatibility with numerous option parts for further customization and tuning.
About The Racing Fighter
Suspension & Steering
Equipped with 4-wheel independent double wishbone suspension featuring long arms and CVA oil bypass dampers, ensuring excellent shock absorption and superior handling on a variety of terrains. The front suspension arms are designed with a 22.5-degree skid angle, allowing for smooth and precise movement over obstacles. Additionally, the model introduces a 3-piece steering tie-rod system, offering a true and responsive steering feel—marking the first time this design has been used in the Fighter series. These advanced suspension and steering features provide enhanced performance and control, making the Fighter NXGEN a standout in off-road driving.
Body
The body of this model is truly impressive, crafted from injection-molded white polycarbonate. Similar to the BBX, the body is made up of modular pieces that attach securely to the main chassis. However, unlike the BBX, these components are made from white polycarbonate rather than vacuum-formed clear polycarbonate sheets. This design choice simplifies the assembly process, making it ideal for both beginners and experienced builders, as there's no need for painting—just apply the decals!
History
Single-seater racing buggies have their roots in the 1960s and 1970s off-road racing boom, emerging as lightweight, high-speed alternatives to traditional off-road trucks. Inspired by dune buggies and VW-based off-road vehicles, they evolved into purpose-built machines designed for extreme terrain. The SCORE Baja 1000, first held in 1967, helped popularize these buggies, showcasing their durability and performance in grueling desert conditions. Over the decades, advancements in suspension, chassis design, and engine technology have made them a dominant force in off-road racing, competing in events like Ultra4 Racing and the Best in the Desert series.
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- 540-size Tamiya Torque Tuned brushed motor
- Hobbywing produced ESC
Required to Complete:
- 2-channel radio
- Steering servo
- 7.2-7.4volt battery with compatible charger
- Tamiya paints to paint the driver figure
Features:
- Two wheelbases can be selected: 265mm for emphasis on handling or 280mm for emphasis on stability. Reassemble the front section (suspension arms) to switch between two different wheelbases.
- The distinctive body features multiple body panels connected to pipe frames; a design inspired by full size racing buggies.
- Newly designed 2WD rear-wheel drive chassis features durable bathtub frame.

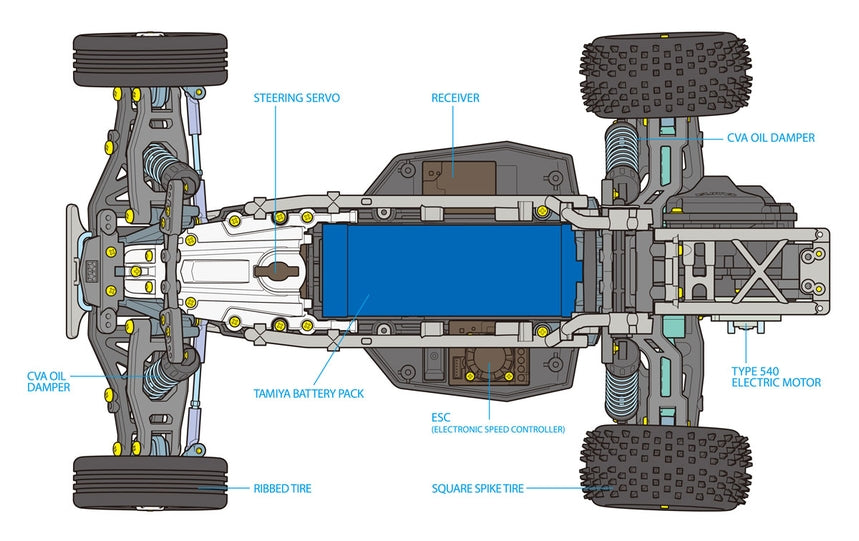

- The chassis has an inline battery pack position, and a rear-mounted motor to give the rear wheels plenty of traction.
- The sealed gearbox has a built-in gear differential for smooth cornering and helps keep out dust and dirt. Side pontoons have the ESC mounted on the left and the receiver on the right.
- Features 4-wheel independent double wishbone suspension with long arms and employs CVA oil bypass dampers.
- Front suspension arms have a skid angle of 22.5 degrees.
- The 3-piece steering tie-rod gives true steering feel. (It is the first time to employ a 3-piece steering tie-rod design in this series.)
- Access the battery pack from the car top. Turn the hood lever and remove the side pins then lift the roof. After that, slide the driver figure forward to access the battery.
- Ribbed tires are on the front, and grippy square spike tires on the rear.
- Features hex hubs on the front and rear to allow attachment of different wheels.
- Features injection molded polycarbonate, glass filled nylon, and nylon parts. (PC, PA-GF, and PA respectively)
- Rear damper attachment positions and rear upper arms can be changed for tuning the car.

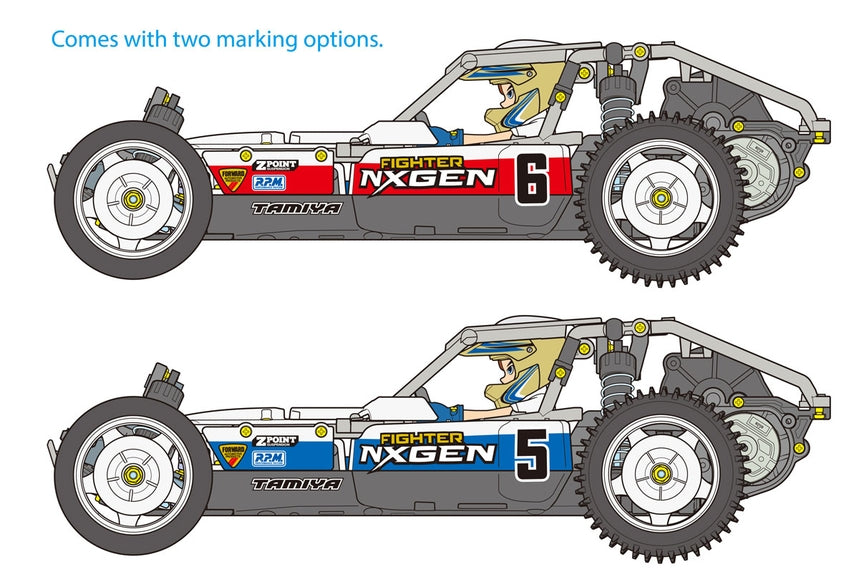

- Comes with two sticker marking options and one driver figure.
- Many separately sold DT-02/DT-03 option parts are compatible, for the DT-04, that provide a wealth of options for fine-tuning.
Specifications:
- 1/10
