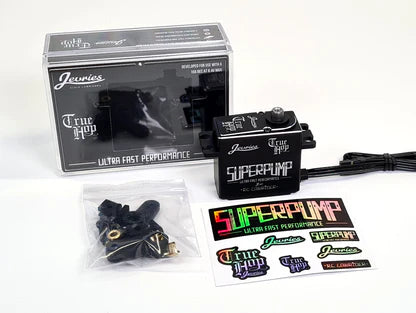

The True Hop Super Pump servo is specially developed to give your car some extra hopping power using a 10A BEC set at max. 8.4V.

Powered by AGFRC!

I do NOT recommend using these servo's on the rear of your RC Lowrider when there's a lot of weight in the trunk. These servo's are designed for crazy fast action and not for lifting a lot of weight in combination with a long servo horn. Please use the dedicated GatePumps for that prupose.

Specs:
Voltage: 7.4V- 8.4V Do not exceed!
Gears: Super Steel Gears
Bearing: 3 HQ Ball Bearings
Operating Temperature: -15°C - +70°C
Pulse / Frequency: 1520uS/ 333Hz
Operating Speed:0.044sec/60° @ 7.4V 0.039sec/60° @ 8.4V
Static Holding Torque: 17.5 kg-cm (243 oz-in) @ 7.4V 19.5 kg-cm (271 oz-in) @ 8.4V
Size: 40*20*37.2mm 1.57*78*1.46inch
Motor Type: Brushless
Spline: 25T/ Dead Band Width 2uSec

For Best results:
- Use a good set of stiff shocks to make sure the car doesn't bottom out as easy.
- Mount the servo with servo horn facing forward.
- Make the first hole on the servo horn large enough so that it fits the ball link.
- Use a 5.5mm hole to hole servo linkage.
- Plug the servo in the receiver with the front switch down.
- Set the endpoints to 50%, mount the horn and adjust untill there's no humming noise.


NOTE:
- These super fast servo's are for experienced users only!
- Always adjust the endpionts to make sure there's no binding (humming noise).
- More speed means more heat! Let these servo's cool down in between hopping sessions.
