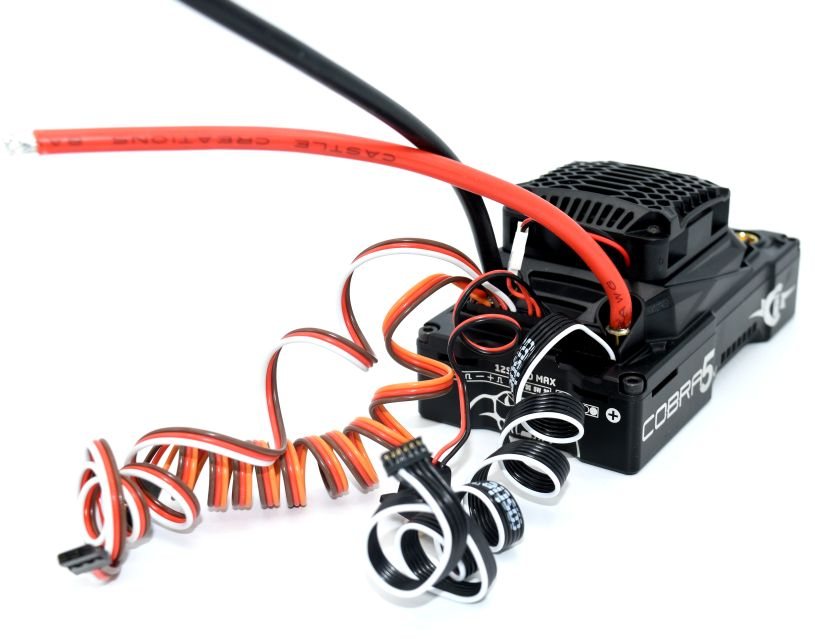

Castle Creations Cobra 5 HV, 12S, 50.4V ESC, 20A Peak BEC

Gallery
Description

Description

The Castle Cobra 5 HV takes everything the Cobra 5 has and dials it up to 12. With 50.4V support (12S LiPo) this ESC is built to tame 1:4 scale monsters weighing up to 50 lbs.

Waterproof : Yes

Telemetry Capable : No

Data Logging : Yes

Auxiliary Wire : Yes

Minimum Input Voltage : 3S

Maximum Input Voltage : 12S

Sensored Capable : Yes

Recon G6 Certified ESC : No

ROAR Certified ESC : No

CRYO-DRIVE : Yes

B-Link Compatible : No

Includes:

Cobra 5 HV ESC
400mm direct connect sensor wire
Cobra decals
Castle Link V4 USB Adapter
Cobra Quick Start Guide

Cobra 5 HV Features:

32-Bit processing power for smoother motor control and improved response time.
Enhanced Data Logging includes: Double the maximum sample frequency of older generations. / 8x increased logging time of older generations. / ESC electrical motor timing data. / Acceleration data via onboard accelerometer. / Looping feature prevents interruptions in data log recording.
Additional tuning features include: Improved braking adjustability / Separate brake and reverse curves / Highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase.
Upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.

Additional Features:

CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 50mm cooling fan
Waterproof design for all weather conditions
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
